Beginner’s Guide To Troubleshoot and Fix Car’s Instrument Cluster

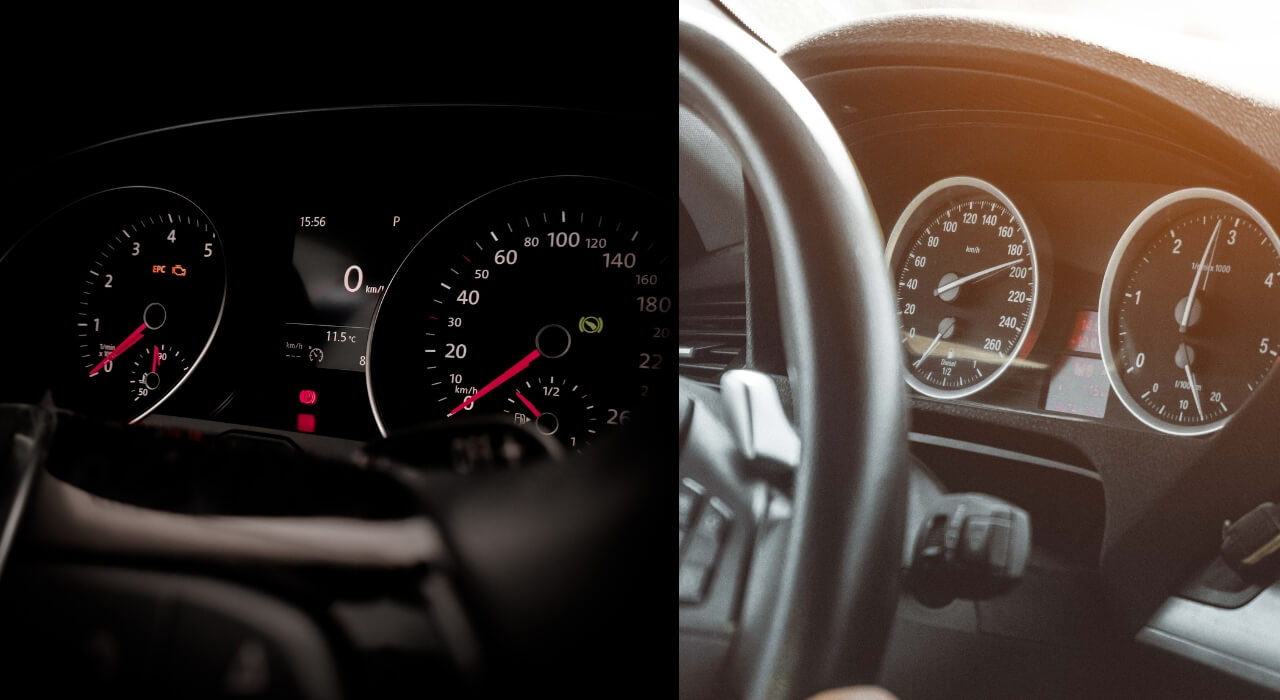

How to Troubleshoot and Fix Your Car's Instrument Cluster

The dashboard of your car is its command center. It is home to the instrument cluster and tells you everything related to the internal workings of your vehicle. You can get all the vital information like speed, fuel level, engine temperature, and more through the instrument cluster on your dash.

But what happens when this information center malfunctions? A broken or malfunctioning instrument cluster can be stressful and even dangerous. Without knowing what is going on inside your ride and whether all its vitals are working accordingly, you can be in serious trouble.

But do not worry. With proper guidance and assistance, you can easily troubleshoot common instrument cluster problems and get your dashboard back to its former glory.

Today, in this article, we will talk about common instrument cluster issues, how to troubleshoot them, and even explore easy ways to take good care of your dash.

So, let us begin.

Understanding The Problem

The first thing you need to do on your journey to handle your dashboard dilemma is to identify the problem. Until you are unaware of what is going on with your instrument cluster, you cannot fix it.

Below, we have a list of some of the most common symptoms of a malfunctioning dashboard panel.

  • Dim or Flickering Light
    If the indication lights on your dash are dimmer than usual or are flickering, then it means that either the bulbs are faulty, the connections are loose, or a dimming switch is failing.
  • Warning Lights Staying On
    If the warning lights, like the check engine light, stay lit even after the issue is resolved, it is a clear indication of a problem with the cluster.
  • Completely Dead Cluster
    If you are getting no lights or no readings on your instrument cluster, it indicates that there is a complete power failure in the cluster.
  • Inaccurate Readings
    It is highly common for gauges to display incorrect fuel levels, speeds, or engine temperatures. All these issues arise due to sensor problems or a malfunctioning driver information panel. If your gauges are repeatedly providing inconsistent data, you may need a professional dash cluster repair to ensure accurate performance.

Step-By-Step Troubleshooting

Step-By-Step Troubleshooting

After understanding the problem with their vehicle’s instrument board, most people jump directly towards fixing it. Sure, there is nothing wrong with fixing a problem, but before you do that, you first need to investigate the problem, gather information about it, and then build a fixing plan.

It does not matter whether you own the most reliable car brands in the auto industry over the last ten years or cars with the best visibility for short drivers; troubleshooting is a major step in handling their instrument cluster issues.

Here are some easy troubleshooting steps for common instrument panel issues that even a newbie can handle.

  • Check Owner’s Manual – Whenever you find your vehicle’s dash panel acting out, the first thing you must do is refer to your car’s owner’s manual. This manufacturer’s guide contains many specific troubleshooting tips that can come in handy.
  • Dimming The Lights – If you are having issues with dim or flickering lights, try adjusting the dimmer switch.
  • Inspect Fuses – A blown fuse can interrupt the power supply to the cluster. Locate the culprit fuse with the help of your owner’s manual and check its condition. If it is broken or blown up, replace it with a new one with the same amperage rating.
  • Secure Loose Connections – Sometimes, a loose connection between the cluster and the wiring can cause your driver information system to malfunction. Take help from the manual to locate the points and secure them well. If you are unable to do it on your own, have a mechanic do the task for you.

Fixing The Problem Without Much Hassle

If following the troubleshooting steps does not solve the issue you are facing, then you will have to go for repairs. While troubleshooting is like providing a band-aid for a problem, fixing is removing the issue from the base to ensure it never happens again.

Here we have a breakdown of potential repairs based on the most common cluster problems that car owners face.

Dim or Flickering Light

If the problem does not resolve even after checking the dimmer switch, the only thing you can do is replace the bulbs, as they might be worn out. For some car owners, it can be a fun DIY project, while others who do not feel confident performing the task can consult a mechanic.

Warning Lights Staying On

If there is no issue related to the warning light that stays on, it means the cluster is not resetting itself and needs manual resetting.Some vehicles allow their owners to reset the cluster through a button combination on the dashboard. You can check your car manual to learn about it. And if your ride does not offer it, a professional can do it for you with the help of their diagnostic tool.

Completely Dead Cluster

If your dash cluster is completely dead, it means there is a complete power failure in the system or a major malfunction within it. This is an issue for which we suggest you seek professional help. A mechanic will not only diagnose the problem but also tell you which components of the cluster need repair or replacement as per the severity of the issue, saving you time and hassle.

Inaccurate Readings

If you are constantly getting wrong readings, then you have faulty sensors that need to be replaced. For this, we again recommend consulting a car professional who can diagnose and repair the sensors easily.

DIY or Professional Assistance

DIY or Professional Assistance

A vehicle’s problems range from simple (which can be fixed even by a newbie) to complex (which require professional attention). You can easily handle issues like replacing bulbs or checking fuses as part of your fun DIY activities.

However, other tasks related to the instrument cluster require the assistance of qualified personnel. A professional like a mechanic has the skills, expertise, and all the necessary tools to pinpoint the problem, recommend an appropriate solution, and implement it.

Here are some signs that suggest it is best to take your car to a mechanic:

  • You are not comfortable or confident working with car electrical systems.
  • The problem requires replacing the sensors or resetting the cluster electronically.
  • There is a need for in-depth diagnosis for a complex malfunction with the cluster itself.

Taking Care Of Your Dashboard

The popular saying “prevention is better than cure” is true not only in the case of human health but also in the case of your automobile. Preventing problems is always better than fixing them. Check out some tips below that will help you keep your instrument cluster healthy:

  • Avoid Exposure To Extreme Temperatures – Always make sure to avoid exposing your ride to extreme temperatures. Try to park inside. If not possible, then look for shaded areas in the summer and areas with overhead coverings to protect your car from rain or snow.
  • Dim the Lights At Night – Using the top brightness level settings for a long period of time can stress the bulbs. So make a habit of switching to the lower levels at night to keep them protected.
  • Regular Maintenance – Last but not least, make a routine for your car’s maintenance. Schedule an appointment with a professional at least once every three months to stay one step ahead of the issues. Regular maintenance will help you diagnose potential issues and address them before they turn into severe problems.

Although a broken instrument cluster can be inconvenient, you can restore your dashboard’s functionality with the right troubleshooting and repairs. Always remember that safety comes first. Consult a reliable mechanic without hesitation if you have any questions about any process. You can make sure that your driving experience is seamless and regulated by paying attention to your dashboard and following the tips mentioned above.
